Ethernet Solutions for Campus Networks LP Banners Pro Labs

Ethernet Solutions for Campus Networks

Contact us

The constant growth in traffic caused by cloud applications, artificial intelligence (AI), and video streaming is driving the demand for faster and higher-capacity campus network solutions. They are pushing campus networks to new heights with 25G/100G Ethernet solutions due to their high bandwidth, low power consumption, and high density.

25G/100G Ethernet Solutions

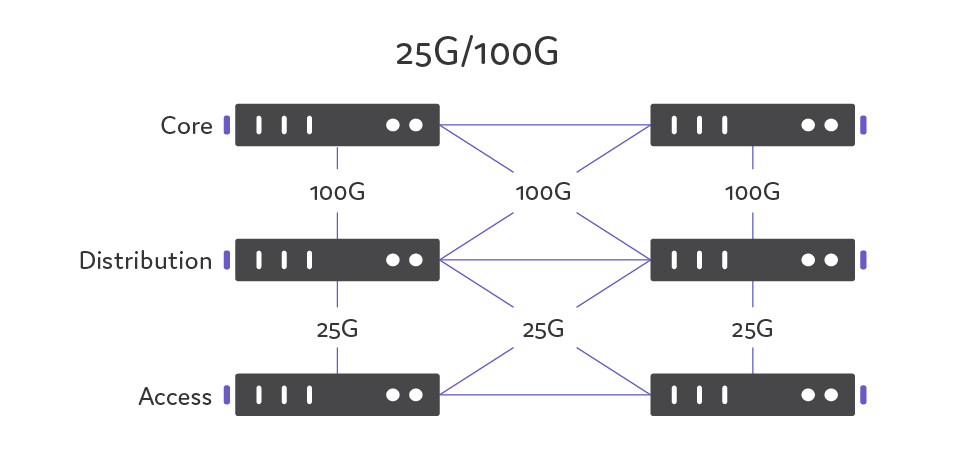

A 25G/100G campus network's typical uplink bandwidth is 25G from the access layer to the distribution layer and 100G from the distribution layer to the core layer. 25G/100G upgrade solutions typically drive campus networks toward greater performance and scalability due to the numerous benefits it offers.

Benefits of 25G/100G Ethernet

Increase of Bandwidth

Compatibility with Transceiver Modules

Usage of Existing Optical Fibers

Reduce Power Consumption

25G/100G Product Guide



Category

Products

Features

25G


Transceiver

SFP28 25G

  • Offers a wide variety of high-density and low-power connectivity
  • Up to 400m over multi-mode fiber

SFP28 25G Bidi

  • Double bandwidth by using only one fiber for transmit & receiving
  • Up to 40km over single-mode fiber

SFP28 CWDM/DWDM 25G

  • Provides a variety of connectivity options for short range or long-haul transmissions
  • Up to 10km over single-mode fiber

DACs & AOCs

SFP28 25G DAC

  • For short distance connections
  • Operates over passive copper with a max reach of 2m

SFP28 25G AOC

  • For longer transmission distance and better transmission performance
  • Operates over multi-mode fiber with a max reach of 7m

100G


Transceiver

QSFP28 100G

  • Provides high-speed data transmission and performance
  • Up to 80km over single-mode fiber

CFP/CFP2/CFP4 100G

  • For high-speed digital signal transmission in long-distance
  • CFP – up to 150m over multi-mode fiber
  • CFP2 – up to 40km over single-mode fiber
  • CFP4 – up to 10km over single-mode fiber

DACs & AOCs

QSFP28 100G
DAC/AOC

  • Simplifies patching and offers a cost-effective way for short links
  • DAC – operates over passive copper with a max reach of 1m
  • AOC – operates over active fiber with a max reach of 15m

QSFP28 to 2xQSFP28
DAC/AOC

  • DAC – operates over passive copper with a max reach of 2.5m
  • AOC – operates over multi-mode fiber with a max reach of 5m

QSFP28 to 4xSFP28
DAC/AOC

  • DAC – operates over passive copper with a max reach of 5m
  • AOC – operates over multi-mode fiber with a max reach of 10m

For more information on 25G/100G Ethernet solutions or a quote, contact us today.
